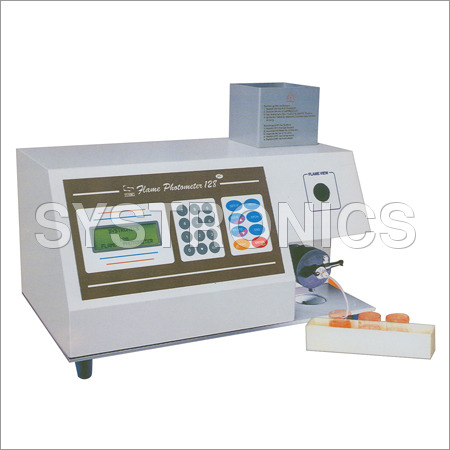

Micro Controller Based Flame photometer-128
Product Details:
X
Product Description
Flame Photometer-128
Systronics Flame Photometer 128 is a micro-controller based instrument designed to provide automation in operation, measurements and end-result presentation. It does the estimation of Sodum (Na). Potassium (K), Lithium (Li), and Calcium (Ca) in single aspiration of a sample.
For user's convenience, the nstrument offers two measuring modes: (I) Low Concentration and (ii) Hihg Concentration.
There is facility of curve fitting correction for non-linear emission characteristics of element, at higher concentration, store (save) Set-up for frequently used, measurement (in a battery-backup memory) and the same can be recalled whenever required with a press of a button. Also re-standardization using single standard to minimize the effect of any unforeseen drift without going for the full recalibration.
4 Line 20-character LCD readout provides easy user interface & precentation of results. A Centronics printer port provides printout of results on EPSON compatible Dot Matrix Printer, supply of Printer is an optional.
Salient Features
Systronics Flame Photometer 128 is a micro-controller based instrument designed to provide automation in operation, measurements and end-result presentation. It does the estimation of Sodum (Na). Potassium (K), Lithium (Li), and Calcium (Ca) in single aspiration of a sample.
For user's convenience, the nstrument offers two measuring modes: (I) Low Concentration and (ii) Hihg Concentration.
There is facility of curve fitting correction for non-linear emission characteristics of element, at higher concentration, store (save) Set-up for frequently used, measurement (in a battery-backup memory) and the same can be recalled whenever required with a press of a button. Also re-standardization using single standard to minimize the effect of any unforeseen drift without going for the full recalibration.
4 Line 20-character LCD readout provides easy user interface & precentation of results. A Centronics printer port provides printout of results on EPSON compatible Dot Matrix Printer, supply of Printer is an optional.
Salient Features
- Micro-controller based automation for ease of operation
- Determination up to four elements with single aspiration (Na, K, Li, and Ca)
- Curve Fitting Correction for non-linear emission characteristics of element, at hiher concentration: maximum five-point calibration
- Storing facility for Set-ups and results (date wise & batch wise, maximum 700 results); the same can be recalled whenever need arise
- Foru Line 20-character LCD readout
- Facility for re-standardization with single standard
- Multi standard graph in dot matrix print out
- Built in real time clock for date and tme of analysis
- Centronics printer port provided for print out of results (simultaneous with analysis or recalled) on EPSON compatible Dot Matrix Printer, supply of Printer is optional
- Printout facility for individual sample, batch sample, total day's samples, or entire results in the memory (700 max.)
- Air compressor with built-in air regulator and air filter (Systronics 126)
- PC Link software for transferring data to computer and manipulation of data in computer using RS-232 (Optional).
Technical Specifications
| Elements | Low Conc. Mode (Max.) Without Dilution | Hih Conc. Mode (Max.) Without Dilution |
| Na | 10 ppm. | 100 ppm. |
| K | 10 ppm. | 100 ppm. |
| Li | 2 ppm. | 50 ppm. |
| Ca | 100 ppm. | 300 ppm. |
Suitable dilutions should be made for solutions of higher concentrations than given in the above table.
A curve fitting software is provided for the High concentration Mode.
Accuracy: +- 2.0% of Full scale
For reliable results the concentration of the diluted solutiosn should not be lower than the 1 / 10th of the selected range.
Full Scale Sensitivity
| Na : 2 ppm | K : 1 ppm | Li : 1 ppm | Ca : 30 ppm |
Minimum Detective Limit
| Na: 0.2 ppm | K: 0.1 ppm | Li: 0.1 ppm | Ca: 3 ppm |
- Filters (10 nm Typical): Na and K supplied; Li and Ca (optional)
- Reproducibility: Low Conc.: +-1% f.s.; High Conc.: +- 2% f.s.
- Minimum Sample: Approx 3 ml per element (at Avg. Time of 4 sec.)
- Averaging: 2 to 15 seconds, selectable
- Aspiration Time: (5 Sec + Avg. Time) per element + 4 Sec.
- Operating Air Pressure: 0.45 k / cm2 (typical)
- Air Compressor: With built-in air regulator and air filter to deliver stable and moisture / oil free air supply
- Fuel Gas: LPG
- Power Supply: 230 Vac +- 10%, 50 Hz.
