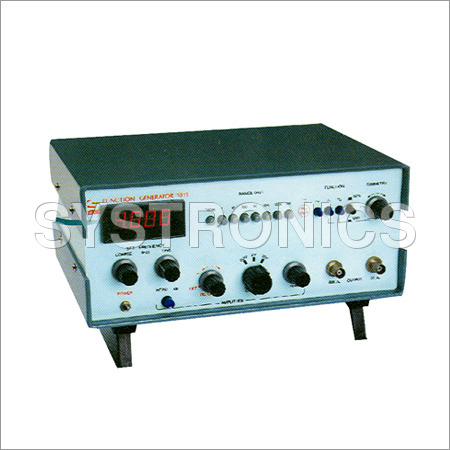

Function Generator

Function Generator
Function Generator
Product Code : 1013
Product Description

Since 1965, we have been serving our clients by manufacturing and supplying a quality grade Function Generator. These generators are manufactured using the vest quality materials and components sourced from the reputed vendors of the market. In laboratories and electrical industries our Function Generator is used to measure the different kinds of waveforms. We can make the generator available for the clients in different customized designs and offer at the market leading price.

Features:

  • Accurate output reading

  • Short circuit protected

  • Compatible out signal level

Further Details:

  • Five different wave forms: Sine, Square, Triangular, Rectangular & Ramp.
  • DC Offset on all waveforms
  • Frequency Range: 0.01 Hz to 1 MHz
  • External AM, FM & SWEEP Modulation
  • Sync O/P: TTL Compatible.
Technical Specifications: -

Frequency Characteristics
Range
0.01 Hz to 1 MHz in eight decadic ranges
Readout
3.182 Digit panel meter (DPM)
Accuracy
+-3% of setting +- 0.1% f.s. upto 100 KHz
Stability
Within 0.5% after an initial warm up of 20 minutes

Output Characteristics
Amplitude and offset range:
Coarse
Amp. Signal level
Offset level
setting
(open ckt.)
(open ckt.)
20V
2V to 20V (pk-pk)
0 to +- 5V
2V
0.2V to 2V (pk-pk)
0 to +- 0.5V
0.2V
0.02 to 0.2V (pk-pk)
0 to +- 0.05V

The Fine Amplitude control varies the signal level from selected COARSE Level down to its 1/10th value. The OFFSET control varies the offset level (selected by COARSE AMPLITUDE Control) between the two-polarity extremes.

Amplitude Readout
3.1/2 digit panel meter, reading peak output
with an accuracy of +-5% of setting
Amplitude Flatness
+- 2% from 0.01 Hz to 10 KHz, +- 5% from
10 KHz to 100 KHz.

Waveform Characteristics
Sine Wave Distortion
1.0% typical for 10 Hz to 10 KHz; 1.5%
typical for 10 KHz to 100 KHz
Pulse/Square Wave
Rise and Fall Time
100 ns. approx.
Pulse/Ramp
Asymmetry
20 : 80 to 80 : 20 Frequency will deviate
from set frequency
Ramp/Triangular
Wave linearty
2.5% for 0.1 Hz to 100 KHz; 5% for .1 Hz
to 0.01 Hz
Output Impedance
5 ohms +- 5%; 600 ohms +- 5, Signal
can be connected to any ONE at a time
Protecion
The output is short circuit protected.

External Modulation
Modulation
1 AM: Approx. 1.5V pk-pk approx. for
30% modulaion

2 FM: Approx. 3V pk-pk aprox. for 5%
deviation

3 SWEEP: Approx. 3V pk-pk approx. for
1:10 sweep
TTL Output
TTL Compatible out signal level.
General:
Temperature Range
10oC to 45oC
Power Supply
230 V; +- 10% (50 Hz)

Accessory
BNC to Crocodile Cable 1 No.
