Analog Oscilloscopes

Analog Oscilloscopes
Analog Oscilloscopes
Product Code : 6020
Product Description

Established in the year 1965, our organization is well known as a leading manufacturer and supplier of Analog Oscilloscopes. We manufacture these using the quality grade materials and components obtained from the authentic vendors of the market. Offered Analog Oscilloscopes are used to observe the continually varying signal voltages in laboratories. Our clients can avail these instruments from us in different customized specifications as per their requirements. We also check our products on quality and performance parameters before offering to the clients.

Features:

  • Rugged design

  • Excellent amplitude calibration

  • Light weight

Further Details:

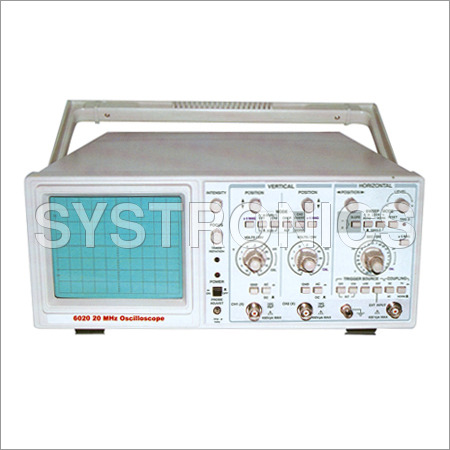

We are engaged in offering Oscilloscopes to our clients. Oscillocope 6020 is a 20MHz Dual Channel Oscialloscope that is ideal for professionals as well as students undergoing technical studies. it is a ruged, lightweiht instrument that features a bright, sharply defined trace on an 80 x 100 mm cathode ray tube. The low noise vertical system supplies calibrated deflection factors from 5m V to 10V per division at full bandwidth. Stable triggering is achieved over the full bandwidth of the vertical system. The flexibility and high sensitivity of the rigger system provides a range of conveniences such as automatic trigger mode, normal trigger mode, independent selection of V field triggerin and single sweep triggering. The internal triger signal is AC coupled, An external triggering signal or an external Z-axis modulation signal can be appied via a front panel or rear panel connector and the source selector switches. The horizontal system provides calibrated sweep speeds from 0.2S to 0.1uS per division. For greater measurement accuracy a "X 5" - magnifiercircuit extends the maximum sweep to 20nS per division. Feel free to contact us.

Special Features
Synchronization of the signals from the two channels can be identified by a red LED, marked as "TRIG'D", present on the right hand side top on the front panel. Synchronization can be achieved even if the waveform inputs in both the channels are different in amplitude, frequency and shape X & Y Channel (V/mV) amplitude calibration facility is provided. Variable sweep facility is also available. Upto 400V peak Voltage input in both the channels are possible.

Bandwidth
DC - 20 MHz
Deflection FActor
5 mV / Div ~ 10V / Div. Mag. X5
Sweep Rate
0.2S ~ 0.1uS / Div. Mag. X5
Trigger Synchroniztion
Int., Alt, line, Ext.
Sweep Mode
Auto, Trigger, Single Time

Vertcal Deflection System

Deflection Factor
5mV / Div. to 10V / in a
1-2-5 sequence of 11 steps
Accuracy
+- 5%
Variable Control Range
Continuously variable and
uncalibrated between step
setting. Increase deflection
factor by at least 2.5 to 1
Band widht
20 MHz
Rise Time
17.5nS or less
AC Coupled Cut Off Frequency
10 Hz or less
Common Mode Rejection Ratio
At least 10 to 1 at 20 MHz
Magnifier
XP, Provides 1 mV/Div
Mode
CH1, CH2, Alt, Chop,
Add,, Inv CH2, X-Y

Input Characteristics
Direct Input
Via. 10: 1 probe
Resistance
1 M © +- 2%
10 M © +- 5%
Capacitance
30 pF +- 5pF
20 pF +- 5pF
Max. Safe Input Voltage
(DC or AC Coupled)
400 V (DC + AC) Peak

Channel Isolation
Greater than 10 : 1 @ 10 MHz
Invert Mode
In channel 2 only


Horizontal Deflection System

Sweep Rate
0.2 S / Div to 0.1 µS/Div in a
1-2-5 sequence of 20 Steps
Magnification extends
maximum possible usable
sweep speed to 20nS/Div
Accuracy
+- 5% Approx.
Variable Control
> 2.5 : 1
Sweep Linearity
+- 10%

Trigger System

Trigger senstivty
(For Auto & Norm. Mode)
Internal Signal
0.1 Div.
Exernal
0.2 VP-p
TV Field Mode
(Composite Sync.)
Internal
2 DIV
External
0.3 Vp-p

X-Y Operation

Deflection Factor
5m V/div ~ 10V/Div.
Bandwidth
DV: 0 ~ 1 MHz
AC
10 Hz ~ 1 MHz
Accuracy
+- 5%
Phase Difference
<3o from DC to 50 KHz

Z Modulation


Sensitivity
5V causes noticeable
modulation, Positive going
input decreases intensity
Usable Frequency Range
DC ~ 1 MHz
Max. Safe Input Voltage
50V (DC + AC) Peak
Input Resistance
10k ©

Proble Adjustment Signal Output

Voltage into 1 M © Load
0.5 V +- 2%
Repetition Rate
1 KHz +- 2%
Wave form
Square Wave
Component Tester
16v P-P (Approx.)

Cathode Ray Tube

Display Area
8 Div x 10 Div (1 Div = 1 cm)
Nomnal Acceleration Voltage
2 kv
Trace Rotation
Provded

Power Requirement

Lne Volage Range
230 V +- 10%
Line Freqency
50 Hz +- 2 Hz
Max. Power Consumption
40W approx.

General Characteristics


Weight
7.2 kgs (approx.)
Dimensions
320 mm (L) x 124 mm (W) x 380 mm (D)
Operation Temperature
0oC to 40oC
Relative Humidity
90% (40oC)

Accessories

Operation Manual
Power Chord; Dust Cover, BNC to
Crocodile Probes
Optional
1 : 1 & 10 : 1 probes
